Digital Protractor Inclinometer Precision Digital Inclinometer Electronic Inclinometer Sensor Electronic Level Sensor
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation

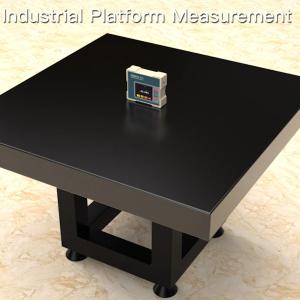

★ Industrial platform
★ Turntable testing
★ Pan unit angle detection
★ Production jig
▶ FEATURES
★ Best accuracy:<0.02°
★ Repeatability:0.04°
★ Maximum measure range:±90°
★ Data store function
★ Absolute/Relative measurement can switch
★ Both sides and bottom can measure
★ Three surface datum strong magnetic installation
★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function
★ Auto temperature drift compensation
★ User can calibrate ZERO by himself
★ Night vision fours colors screen
★ Three kinds of measurement mode selectable (radian, angle, mm/m)
★ Angle resolution:0.001°
▶ TECHNICAL DATA
| DMI610 | PARAMETERS |
| Angle measure range | ±90° | ±30° |
| Measure axis | Single axis | Dual axis |
| Best accuracy | <0.02°(RMS)(Full range) | <0.005°(RMS)(Full range) |
| Angle measure resolution | 0.001° | 0.001° |
| Repeatability | 0.004° | 0.004° |
| Measurement mode | radian, angle, mm/m three modes can be set |
| LCD | 64 true colors night vision display screen |
| LCD visible area size | L60.5*W45mm |
| Working temperature | -10℃~+70℃ |
| Working humidity | 85%RH |
| Power supply | 1.5V |
| Ideal working time | 6Hours |
| Shock resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) |
| Shock impact | 10grms,10～100Hz |
| Weight | 600g |
| Waterproof grade | IP65 |
| Material | Anodic oxidation of aluminum alloy |
| Size | L115*W95*H32mm |
| Precautions | In order to achieve the highest measurement accuracy, please set the latitude information of the local city, and it will be automatically saved after setting. (Refer to the third point of the third point in the main interface function introduction of this specification) |
Function menu operation instructions
