DMI420 IP54 3.7V Lithium Battery Powered Dual Axis Tilt Monitor anti-impact

Name: DMI420 IP54 37V Lithium Battery Powered Dual Axis Tilt Monitor antiimpact
Brand: RION
Price: 234.00 USD

Wholesale DMI420 IP54 3.7V Lithium Battery Powered Dual Axis Tilt Monitor anti-impact from china suppliers

Brand Name : RION

Model Number : DMI420

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 Pieces

Price : $234.00/Pieces

Payment Terms : T/T, Paypal

Supply Ability : 3000/month

Delivery Time : 5 days for sample

Packaging Details : 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Warranty : 1 year

Digital Inclinometer Measuring range : +/-90deg

Accuracy : <0.05deg

Product size : L83*W53*H19.2mm

Resolution : 0.01°

LCD visible area size : L40*W32 mm

Power supply : 3.7V Charging Lithium battery

Working Temp. : -10 ~ 70C

Contact Now

DMI420 IP54 3.7V Lithium Battery Powered Dual Axis Tilt Monitor anti-impact

General Description

DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Key Features

★ Night vision fours colors screen

★ IP54 protection class

★ Angle/length dual unit switch

★ 100g High anti-impact

Application

★ Machinery installation

★ Piping installation

★ Industrial platform

★ Turntable testing

★ Cloud deck angle detection

★ Production jig

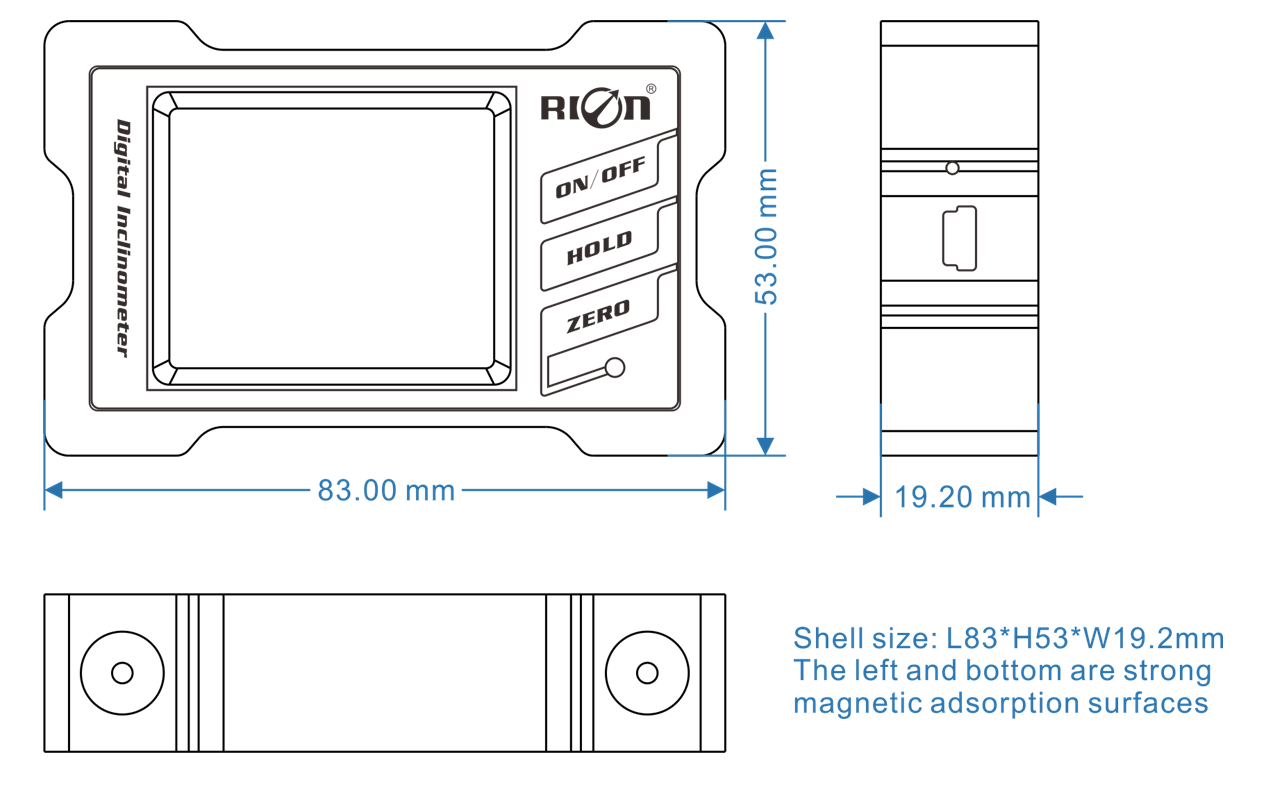

Dimension

DMI420 IP54 3.7V Lithium Battery Powered Dual Axis Tilt Monitor anti-impact

Measure direction
