DC AGV MEMS Gyroscope Sensor Anti Vibration

Name: DC AGV MEMS Gyroscope Sensor Anti Vibration
Brand: RION
Price: 235.00 USD

Wholesale DC AGV MEMS Gyroscope Sensor Anti Vibration from china suppliers

Place of Origin : Guangdong, China

Brand Name : RION

Model Number : TL740D-485-MODBUS

Packaging Details : 1pcs angular sensor in each inner box , 100pcs /ctb

Supply Ability : 3000 Piece/Pieces per Month angular sensor to be sold

Price : $235.00/Pieces >=1 Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T, Paypal

Delivery Time : 7 days for samples

angular sensor resolution : 0.01°

Measuring Range : Azimuth Angle (±180 °)

Acquisition bandwidth : >100 Hz

Azimuth accuracy : <0.1°/min

Max angle rate : ≥300 °/s

Working Temp. : -40 ~ +85 ℃

Storage Temp. : -40 ~ +85 ℃

Working life : 10 years

Contact Now

DC AGV MEMS Gyroscope Sensor Anti Vibration

This product is specially used for robot car, AGV vehicle relative heading orientation, attitude control and other related applications, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.

Key Features

Azimuth angle output
Strong vibration resistance
Light weight
Long life,strong stability
Cost-effective
All solid state
Compact & light design
RS232/RS485 output optional
DC9~36V power supply

Application

AGV truck
Car Navigation
3D virtual reality
Platform stability
Auto safety system
Turck-mounted satellite antenna equipment
Industrial control
Robot

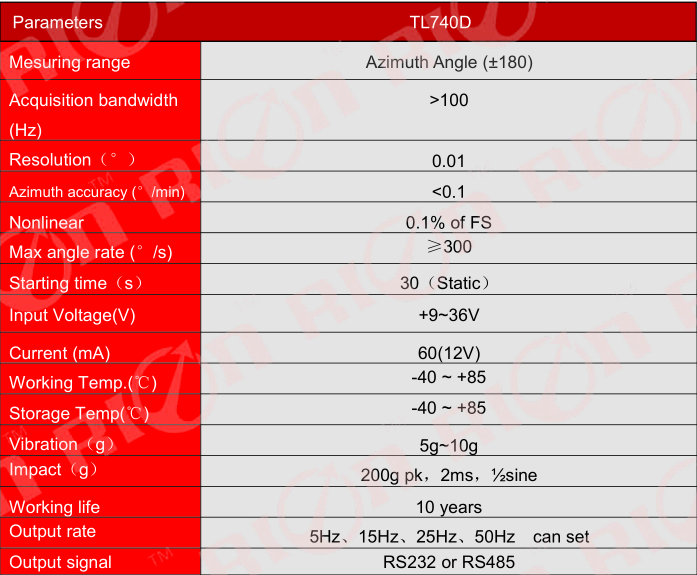

Specification

TL740D	PARAMETERS
Mesuring range	relative heading Angle (±180°)
Acquisition bandwidth	>100Hz
Resolution	0.01°
relative heading accuracy	<0.1°/min
positional accuracy	<2mm/m (converted from angle accuracy)
Nonlinear	0.1% of FS
Max angle rate	150°/s
Accelerometer range	±4g
Acceleroemter resultuion	0.001g
Acceleroemter accuracy	5mg
Starting time	5s(Static)
Input Voltage	DC9V~36V
Current	60mA(12V)
Working Temp.	-40 ~ +85℃
Storage Temp.	-40 ~ +85℃
Vibration	5g~10g
Impact	200g pk,2ms,½sine
Working life	10 years
Output rate	5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set

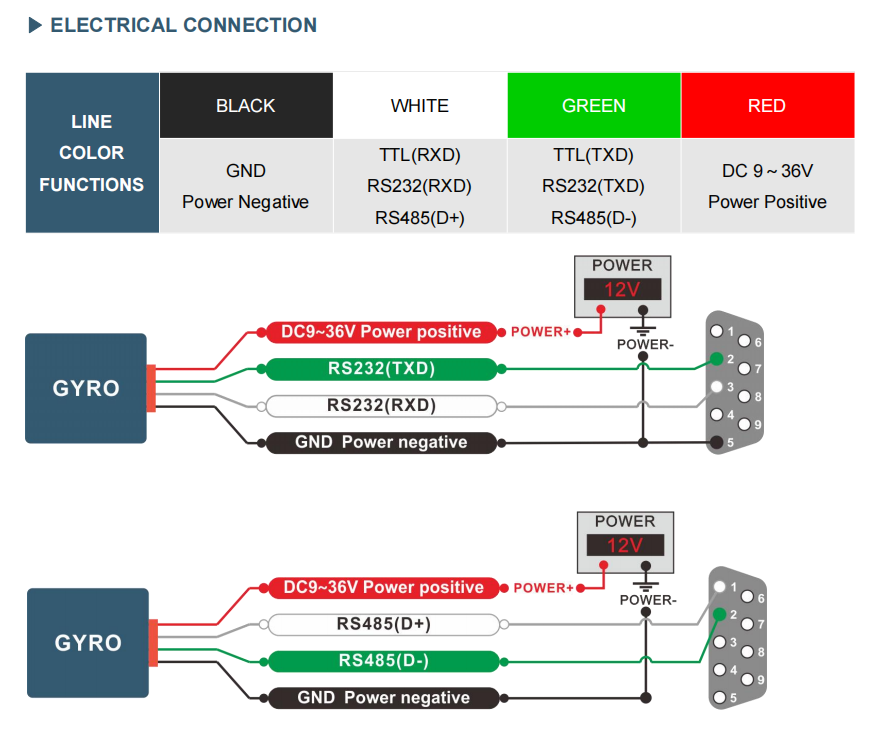

Output signal	RS232 / RS485 / TTL (Optional)
MTBF	≥98000 hours /times
Insulation resistance	≥100 Megohm
Impact resistance	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protecting	IP67
Weight	≤150g (including 1 meter cable)

Size

DC AGV MEMS Gyroscope Sensor Anti Vibration
