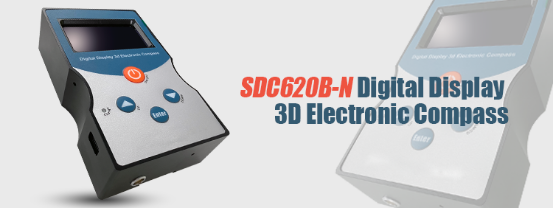

SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°～0.5° Course Angle Accuracy and 360° Measuring Range

  • 1
  • 2
  • 3

Brand Name : RION

Model Number : SDC620B

Place of Origin : China

MOQ : 1

Price : $580.00/Pieces

Payment Terms : T/T,Paypal

Supply Ability : 1000/month

Delivery Time : 7 days for samples

Packaging Details : 1pcs / inner box with sponge , 50pcs/ctn

Course angle accuracy : 0.3°～0.5°

Measuring range : 360°

Operating current : 50mA (typical)

Operating temperature : -20℃～+70℃

Vibration resistance : 3000g

Tilt angle accuracy : 0.1deg

Connector : 4 PIN Remo air plug

Size : 137.3×83×37mm

Contact Now

SDC620B 3.7V Lithium Battery High Precision Inclinometer Antenna Servo Control

SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°～0.5° Course Angle Accuracy and 360° Measuring Range

▶ FEATURES

★ Heading angle accuracy: 0.3° ~ 0.5°

★ Angle compensation range: ± 85°

★ With soft and hard magnetic field calibration

★ Heading angle measurement range: 360°

★ 60 hours of continuous working endurance

★ Reset function

★ IP54 protection grade

★ Integrated design of handheld and dovetail installation

▶ APPLICATION

★ Navigation mapping

★ GPS integrated navigation

★ Antenna servo control

★ Pile driver angle real-time monitoring

★ Map Redrawing Tool

★ Oceanographic survey instrument

▶ ELECTRICAL CHARACTERISTICS

SDC620B-N Parameter
Compass heading parameter Course angle accuracy 0.3°～0.5°
Measuring range 360°
Resolution 0.1°
Repeatability 0.1°
Roll Angle 0.1 ° < 60 ° (measuring range)
0.2 ° < 180 ° (measuring range)
Roll angle measurement range ±180°
Resolution 0.1°
Pitch Angle 0.1 ° < 60 ° (measuring range)
0.2 ° < 85 ° (measuring range)
Pitch Angle Measurement Range ±85°
Calibration Hard iron calibration Have
Soft iron calibration Have
Interface characteristics Startup delay < 50 ms
Maximum sample rate 20Hz/s
Communication rate 9600 baud
Output format RION 68 protocol
Power source Support voltage Internal 3.7 V rechargeable lithium battery
Operating current 50mA (typical)
Charging current

Fast charging mode 1.75 A,

fully charged in about 4 hours

Normal mode 0.5A,

full in about 12 hours
Environment Operating temperature -20℃～+70℃
Storage temperature -20℃～+70℃
Vibration resistance 3000g
Physical properties Connector 4 PIN Remo air plug
Cable line Standard 1m cable

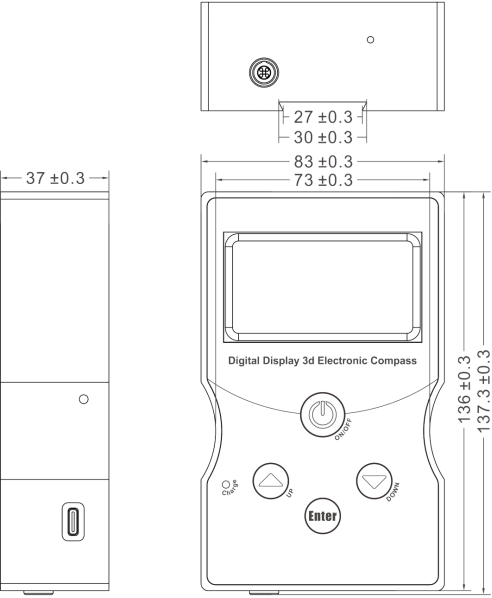

Size 137.3×83×37mm
Weight ≤ 520g (excluding cable)

SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°～0.5° Course Angle Accuracy and 360° Measuring Range
SDC620B 3.7V Lithium Battery High Precision Inclinometer with 0.3°～0.5° Course Angle Accuracy and 360° Measuring Range
